python-opencv表格识别

---

---

前言

提示：以下是本篇文章正文内容，python环境的搭建这里暂不做介绍，不会的同学可以参考一下其它文章。

---

提示：以下是本篇文章正文内容，下面案例可供参考

一、环境准备

1、python环境搭建；
2、tesseract安装(pytesseract)；
3、python必要的一些库(os、cv2、numpy等)；
4、源码调试

二、tesseract-OCR搭建

1.tesseract-OCR

可参考文章https://blog.csdn.net/qq_43317529/article/details/83340739
下载链接：https://digi.bib.uni-mannheim.de/tesseract/
1、下载选择对应的版本；
2、选择安装路径进行安装；
3、若需要下载识别其他语言的字符，可到官网下载对应语言包，下载完成后放到Tesseract-OCR\tessdata\tessconfigs下即可；
4、设置环境变量，进入环境变量中；
5、tesseract -v 检查是否安装成功；

2.debug tesseract

运行源码时发现：pytesseract.pytesseract.TesseractNotFoundError: E:/Tesseract-OCR/tesseract.exe is not installed or it’s not in your PATH. See README file for more information.

PS E:\py\python3.7\test\test22> python .\ocr2.py
mylisty [4, 41, 78, 115, 152, 189, 226, 263, 300, 337, 374, 411]
mylistx [0, 53, 218, 307, 374, 441, 508, 568, 670, 769, 901]
Traceback (most recent call last):
  File "E:\py\python3.7\Python37\lib\site-packages\pytesseract\pytesseract.py", line 252, in run_tesseract
    proc = subprocess.Popen(cmd_args, **subprocess_args())
  File "E:\py\python3.7\Python37\lib\subprocess.py", line 756, in __init__
    restore_signals, start_new_session)
  File "E:\py\python3.7\Python37\lib\subprocess.py", line 1155, in _execute_child
    startupinfo)
FileNotFoundError: [WinError 2] 系统找不到指定的文件。

During handling of the above exception, another exception occurred:

Traceback (most recent call last):
  File ".\ocr2.py", line 82, in <module>
    text1 = pytesseract.image_to_string(ROI) #读取文字，此为默认英文
  File "E:\py\python3.7\Python37\lib\site-packages\pytesseract\pytesseract.py", line 417, in image_to_string
    }[output_type]()
  File "E:\py\python3.7\Python37\lib\site-packages\pytesseract\pytesseract.py", line 416, in <lambda>
    Output.STRING: lambda: run_and_get_output(*args),
  File "E:\py\python3.7\Python37\lib\site-packages\pytesseract\pytesseract.py", line 284, in run_and_get_output
    run_tesseract(**kwargs)
  File "E:\py\python3.7\Python37\lib\site-packages\pytesseract\pytesseract.py", line 256, in run_tesseract
    raise TesseractNotFoundError()
pytesseract.pytesseract.TesseractNotFoundError: E:/Tesseract-OCR/tesseract.exe is not installed or it's not in your PATH. See README file for more information.

解决方式：
1、通过cmd输入pip install pytesseract进行安装，但是安装后并不能直接使用;
2、在Tesseract-OCR的目录下运行pip install pytesseract可以看到自己安装的pytesseract所在路径；

PS E:\py\OCR\Tesseract-OCR> pip install pytesseract
Requirement already satisfied: pytesseract in e:\py\python3.7\python37\lib\site-packages (0.3.8)
Requirement already satisfied: Pillow in e:\py\python3.7\python37\lib\site-packages (from pytesseract) (8.2.0)

3、根据路径找到pytesseract.py；

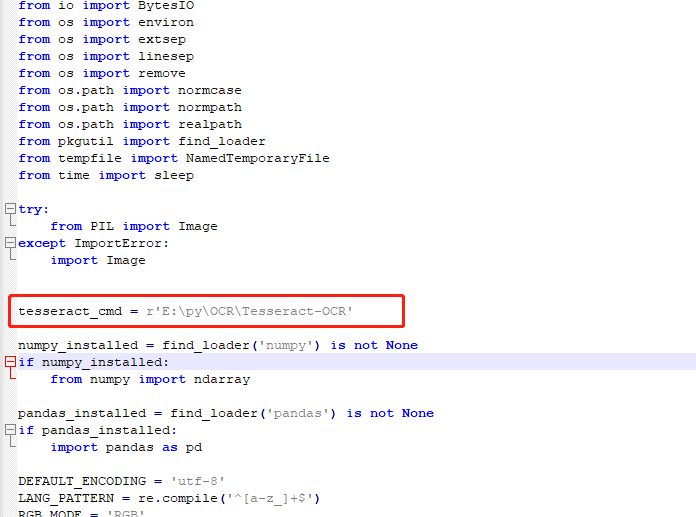

4、点开编辑，找到tesseract_cmd将它改为你刚刚安装的tesseract的路径。

5、添加环境变量，在Tesseract-OCR路径下，再添加一个tessdata；
path=E:\py\OCR\Tesseract-OCR
path=E:\py\OCR\Tesseract-OCR\tessdata
6、在源码中修改路径为Tesseract-OCR的路径即可；

三、源码

1.源码

代码如下（示例）：

# -*- coding: utf-8 -*-
"""
Created on Tue May 28 19:23:19 2019
将图片按照表格框线交叉点分割成子图片（传入图片路径）
@author: hx
"""
import cv2
#import cv2 as cv
import numpy as np
import pytesseract
#image = cv2.imread('C:/Users/Administrator/Desktop/7.jpg', 1)
image = cv2.imread(r'E:\py\python3.7\test\test22\src1.jpg', 1)

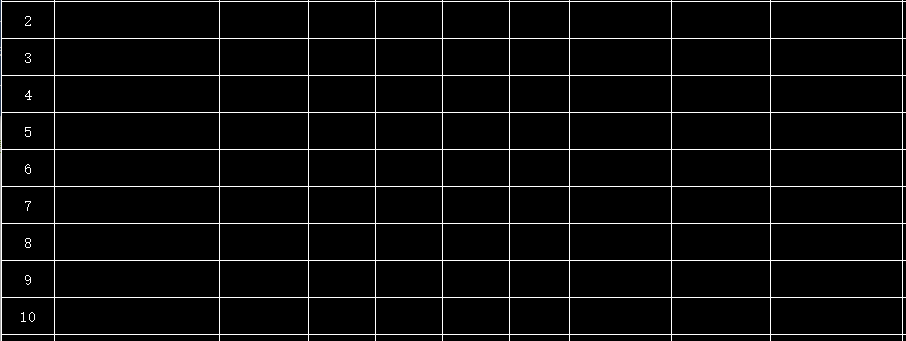

#灰度图片
gray = cv2.cvtColor(image, cv2.COLOR_BGR2GRAY)
#二值化
binary = cv2.adaptiveThreshold(~gray, 255, cv2.ADAPTIVE_THRESH_GAUSSIAN_C, cv2.THRESH_BINARY, 35, -5)
#ret,binary = cv2.threshold(~gray, 127, 255, cv2.THRESH_BINARY)
cv2.imshow("二值化图片：", binary) #展示图片
cv2.waitKey(0)
rows,cols=binary.shape
scale = 40

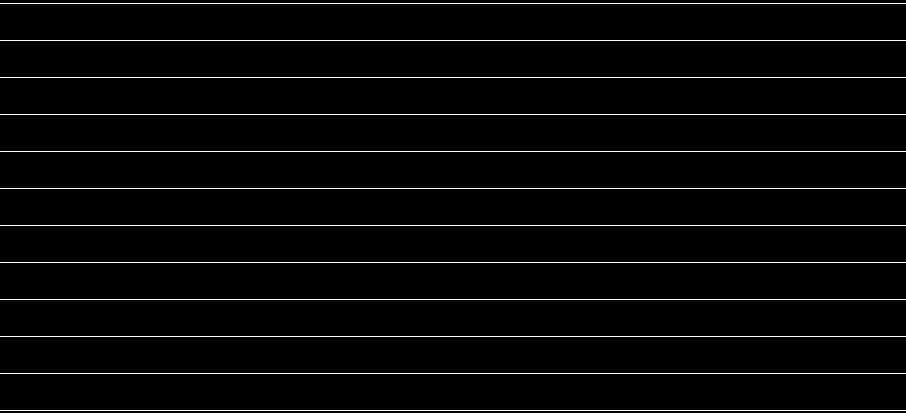

#识别横线
kernel = cv2.getStructuringElement(cv2.MORPH_RECT,(cols//scale,1))
eroded = cv2.erode(binary,kernel,iterations = 1)
#cv2.imshow("Eroded Image",eroded)
dilatedcol = cv2.dilate(eroded,kernel,iterations = 1)
cv2.imshow("表格横线展示：",dilatedcol)
cv2.waitKey(0)

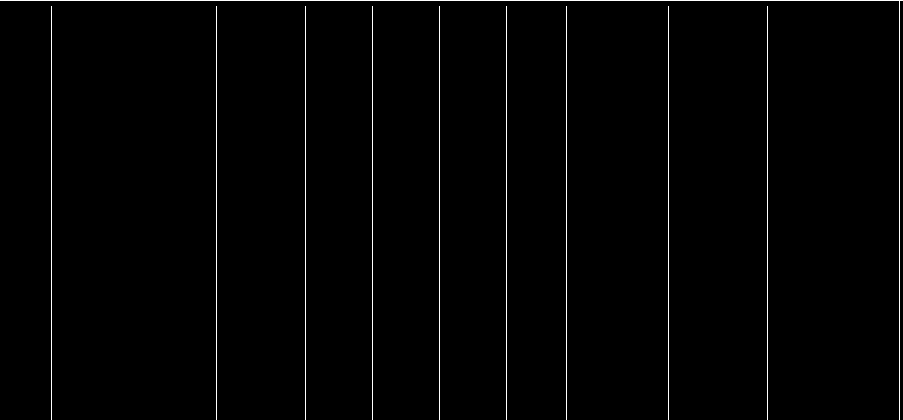

#识别竖线
scale = 20
kernel = cv2.getStructuringElement(cv2.MORPH_RECT,(1,rows//scale))
eroded = cv2.erode(binary,kernel,iterations = 1)
dilatedrow = cv2.dilate(eroded,kernel,iterations = 1)
cv2.imshow("表格竖线展示：",dilatedrow)
cv2.waitKey(0)

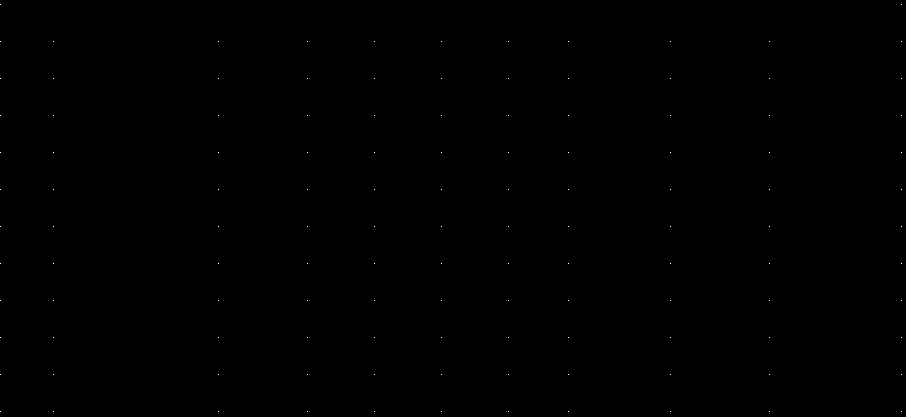

#标识交点
bitwiseAnd = cv2.bitwise_and(dilatedcol,dilatedrow)
cv2.imshow("表格交点展示：",bitwiseAnd)
cv2.waitKey(0)
# cv2.imwrite("my.png",bitwiseAnd) #将二值像素点生成图片保存

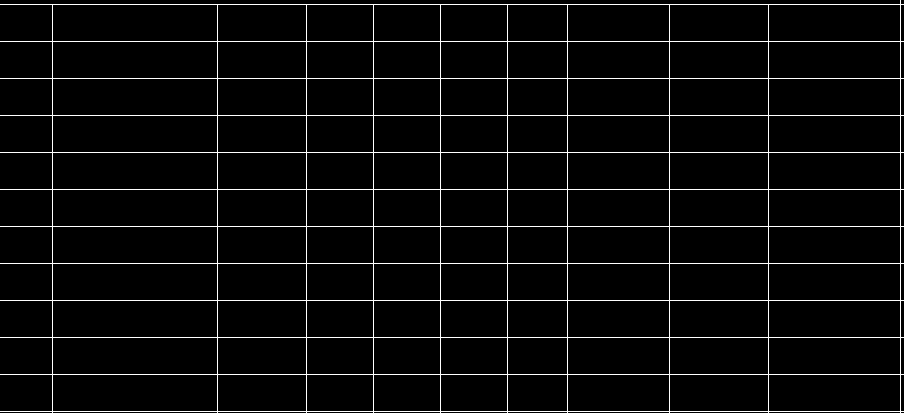

#标识表格
merge = cv2.add(dilatedcol,dilatedrow)
cv2.imshow("表格整体展示：",merge)
cv2.waitKey(0)
#两张图片进行减法运算，去掉表格框线
merge2 = cv2.subtract(binary,merge)
cv2.imshow("图片去掉表格框线展示：",merge2)
cv2.waitKey(0)
#识别黑白图中的白色交叉点，将横纵坐标取出
ys,xs = np.where(bitwiseAnd>0)
mylisty=[] #纵坐标
mylistx=[] #横坐标
#通过排序，获取跳变的x和y的值，说明是交点，否则交点会有好多像素值值相近，我只取相近值的最后一点
#这个10的跳变不是固定的，根据不同的图片会有微调，基本上为单元格表格的高度（y坐标跳变）和长度（x坐标跳变）
i = 0
myxs=np.sort(xs)
for i in range(len(myxs)-1):
 if(myxs[i+1]-myxs[i]>10):
  mylistx.append(myxs[i])
 i=i+1
mylistx.append(myxs[i]) #要将最后一个点加入
i = 0
myys=np.sort(ys)
#print(np.sort(ys))
for i in range(len(myys)-1):
 if(myys[i+1]-myys[i]>10):
  mylisty.append(myys[i])
i=i+1
mylisty.append(myys[i]) #要将最后一个点加入
print('mylisty',mylisty)
print('mylistx',mylistx)
#循环y坐标，x坐标分割表格
for i in range(len(mylisty)-1):
 for j in range(len(mylistx)-1):
#在分割时，第一个参数为y坐标，第二个参数为x坐标
  ROI = image[mylisty[i]+3:mylisty[i+1]-3,mylistx[j]:mylistx[j+1]-3] #减去3的原因是由于我缩小ROI范围
cv2.imshow("分割后子图片展示：",ROI)
cv2.waitKey(0)
#special_char_list = '`[email protected]#$%^&*()-_=+[]{}|\\;:‘'，。《》/？ˇ'
#pytesseract.pytesseract.tesseract_cmd = r'E:/Tesseract-OCR/tesseract.exe'
pytesseract.pytesseract.tesseract_cmd = r'E:\py\OCR\Tesseract-OCR\tesseract.exe'
#pytesseract.pytesseract.tesseract_cmd = r'E:\py\python3.7\Python37\Scripts\py\pytesseract.exe'
text1 = pytesseract.image_to_string(ROI) #读取文字，此为默认英文
#text2 = ''.join([char for char in text2 if char not in special_char_list])
print('识别分割子图片信息为：'+text1)
j=j+1
i=i+1

2.运行结果

---

总结

提示：此源码仅供测试学习，功能尚不完善，持续更新中。
