spring boot 启动tomcat流程，网上已经很多，这里只是给自己以后看，总结，不好勿喷，谢谢.

自动配置类流程：SpringBootApplication>>EnableAutoConfiguration>>
org.springframework.context.support.AbstractApplicationContext#invokeBeanFactoryPostProcessors>>
org.springframework.context.support.PostProcessorRegistrationDelegate#invokeBeanFactoryPostProcessors(org.springframework.beans.factory.config.ConfigurableListableBeanFactory, java.util.List<org.springframework.beans.factory.config.BeanFactoryPostProcessor>)>>
#invokeBeanDefinitionRegistryPostProcessors>>

org.springframework.context.annotation.ConfigurationClassPostProcessor#processConfigBeanDefinitions>>

org.springframework.context.annotation.ConfigurationClassParser#parse(org.springframework.core.type.AnnotationMetadata, java.lang.String)>>

org.springframework.context.annotation.ConfigurationClassParser.DeferredImportSelectorGroupingHandler#processGroupImports>>

org.springframework.context.annotation.ConfigurationClassParser.DeferredImportSelectorGrouping#getImports>>

org.springframework.boot.autoconfigure.AutoConfigurationImportSelector.AutoConfigurationGroup#process>>

#getAutoConfigurationEntry>>

#getCandidateConfigurations>>

#loadFactoryNames>>

#loadSpringFactories

启动流程总归以下三点：

1.spring 的生命周期中，留给后面开发的后门，这里并不是指后置处理器BeanPostProcessor

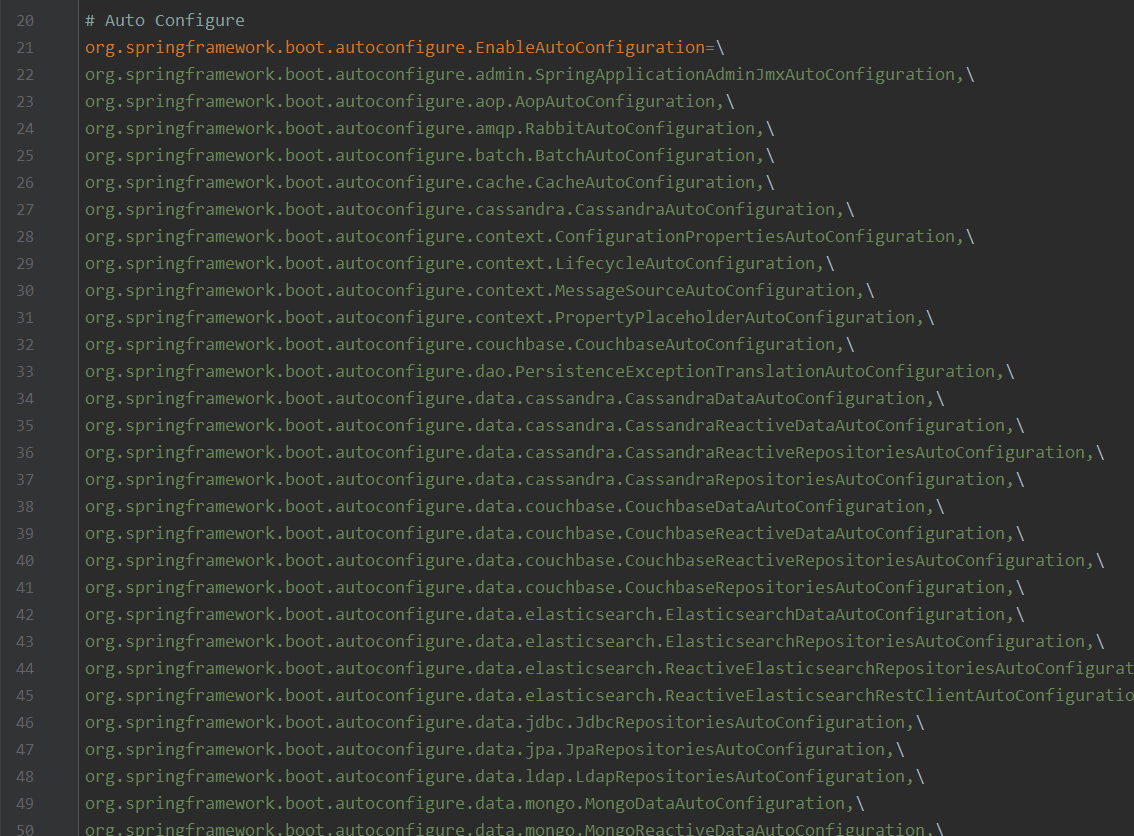

2.spring boot 中自动加载配置类，读取 META-INF/spring.factories 里面的配置类

3.SPI机制

一、读取并初始化依赖里面， META-INF/spring.factories 配置好的接口实现类，此时也利用spi机制

public SpringApplication(ResourceLoader resourceLoader, Class<?>... primarySources) {
		this.resourceLoader = resourceLoader;
		Assert.notNull(primarySources, "PrimarySources must not be null");
		this.primarySources = new LinkedHashSet<>(Arrays.asList(primarySources));
        //设置webapplicationType,这里后续会用到，WebApplicationType#SERVLET
		this.webApplicationType = WebApplicationType.deduceFromClasspath();
        //这里加载META-INF/spring.factories，自动加载配置
		setInitializers((Collection) getSpringFactoriesInstances(ApplicationContextInitializer.class));
		setListeners((Collection) getSpringFactoriesInstances(ApplicationListener.class));
		this.mainApplicationClass = deduceMainApplicationClass();
	}

二、在ServletWebServerApplicationContext类中，重写了onRefresh方法，添加了 createWebServer方法，用来启动tomcat，这里重点是这段代码行

ServletWebServerFactory factory = getWebServerFactory();

这里是获得启动容器类型，比如是tomccat,jetty,undertow，这里从debug来看TomcatServletWebServerFactory，但是它从哪里来呢？从前面的代码中看到，并没有实例此类，初步猜想应该是spring 容器里实现化了，先不管，继续向下看逻辑。

三、看到TomcatServletWebServerFactory中的getWebServer方法，就已经知道tomcat是如何创建的了

@Override
	public WebServer getWebServer(ServletContextInitializer... initializers) {
		if (this.disableMBeanRegistry) {
			Registry.disableRegistry();
		}
		Tomcat tomcat = new Tomcat();
		File baseDir = (this.baseDirectory != null) ? this.baseDirectory : createTempDir("tomcat");
		tomcat.setBaseDir(baseDir.getAbsolutePath());
		Connector connector = new Connector(this.protocol);
		connector.setThrowOnFailure(true);
		tomcat.getService().addConnector(connector);
		customizeConnector(connector);
		tomcat.setConnector(connector);
		tomcat.getHost().setAutoDeploy(false);
		configureEngine(tomcat.getEngine());
		for (Connector additionalConnector : this.additionalTomcatConnectors) {
			tomcat.getService().addConnector(additionalConnector);
		}
		prepareContext(tomcat.getHost(), initializers);
		return getTomcatWebServer(tomcat);
	}

这就不需要解释了，就是设置tomcat参数，并启动，跟tomcat中间件是一套逻辑

四、回过头来，看看TomcatServletWebServerFactory是如何创建的，这里就是SPI机制作用了

这里根据经验，可以猜测应该是跟webServer有关的配置类，可以找到ServletWebServerFactoryAutoConfiguration， EmbeddedWebServerFactoryCustomizerAutoConfiguration 到底哪个呢？这里只能点进去看类的实现，终于发现是ServletWebServerFactoryAutoConfiguration中，ServletWebServerFactoryConfiguration.EmbeddedTomcat这个类

@Configuration(proxyBeanMethods = false)
	@ConditionalOnClass({ Servlet.class, Tomcat.class, UpgradeProtocol.class })
	@ConditionalOnMissingBean(value = ServletWebServerFactory.class, search = SearchStrategy.CURRENT)
	static class EmbeddedTomcat {

		@Bean
		TomcatServletWebServerFactory tomcatServletWebServerFactory(
				ObjectProvider<TomcatConnectorCustomizer> connectorCustomizers,
				ObjectProvider<TomcatContextCustomizer> contextCustomizers,
				ObjectProvider<TomcatProtocolHandlerCustomizer<?>> protocolHandlerCustomizers) {
			TomcatServletWebServerFactory factory = new TomcatServletWebServerFactory();
			factory.getTomcatConnectorCustomizers()
					.addAll(connectorCustomizers.orderedStream().collect(Collectors.toList()));
			factory.getTomcatContextCustomizers()
					.addAll(contextCustomizers.orderedStream().collect(Collectors.toList()));
			factory.getTomcatProtocolHandlerCustomizers()
					.addAll(protocolHandlerCustomizers.orderedStream().collect(Collectors.toList()));
			return factory;
		}

	}

这里就是实现化然后交给spring管理.

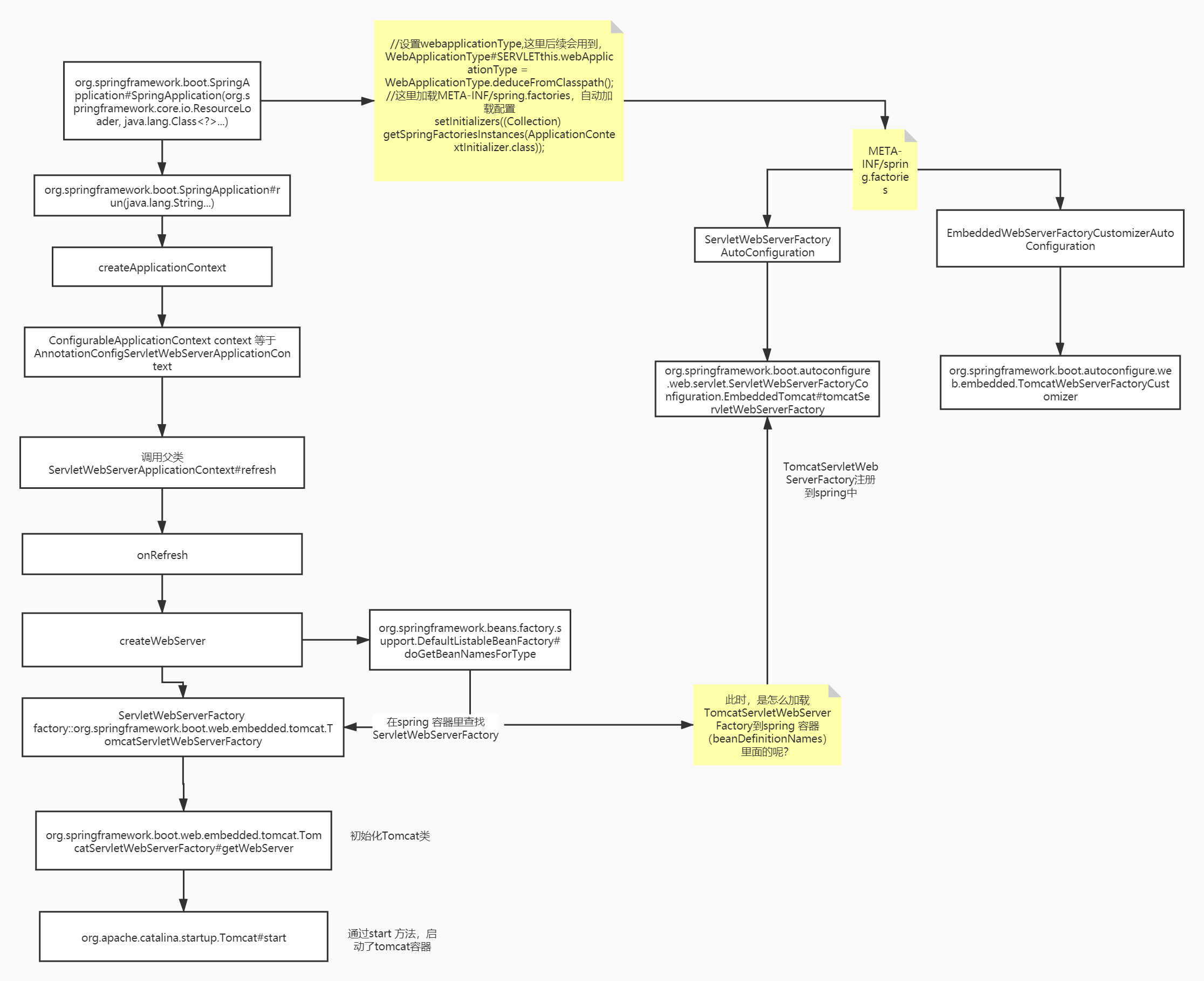

在此就可以将整个流程串起来了。

写得比较跳，仅供自己看，梳理.
