一：使用Dockerfile构建镜像

1.1：Dockerfile常用命令解释

指令	含义
FROM 镜像	指定新镜像所基于的镜像，第一条指令必须为FROM指令， 每创建一个镜像就需要一条FROM指令
MAINTAINER 名字	说明新镜像的维护人信息
RUN 命令	在所基于的镜像执行命令，并提交到新的镜像中
CMD [ “要运行的程序”，“参数1”，“参数2”]	指令启动容器时要运行的命令或者脚本，Dockerfile只能 有一条CMD命令，如果指定多条则只能执行最后一条
EXPOSE 端口号	指定新镜像加载到Docker时要开启的端口
ENV 环境变量 变量值	设置一个环境变量的值，会被后面的RUN使用
ADD 源文件/目录 目标文件/目录	将源文件复制到目标文件，源文件要与Dockerfile位于 相同目录中，或者是一个URL
COPY 源文件/目录 目标文件/目录	将本地主机上的文件/目录复制到目标地点，源文件/目录 要与Dockerfile在相同的目录中
VOLUME [“目录”]	在容器中创建一个挂载点
USER 用户名/UID	指定运行容器时的用户
WORKDIR 路径	为后续的RUN、CMD、ENTRYPOINT指定工作目录
ONBUILD 命令	指定所生成的镜像作为一个基础镜像时所要运行的命令
HEALTHCHECK	健康检查

1.2：构建SSHD镜像

我们下载一个centos：7的镜像，进去发现无法使用sshd服务，我们需要手工添加
1、创建目录，编写Dockerfile文件

[[email protected] ~]# mkdir /sshd
[[email protected] ~]# cd /sshd
[[email protected] sshd]# vim Dockerfile
FROM centos:7	'指定基础镜像'
MAINTAINER CHEN   '描述信息'
RUN yum -y update	'更新容器yum源'
RUN yum -y install openssh* net-tools lsof telnet passwd	'部署环境工具'
RUN echo "123123" | passwd --stdin root	'设置root登录密码'
RUN sed -i 's/UsePAM yes/UsePAM no/g' /etc/ssh/sshd_config	'禁用ssh中的pam验证'
RUN ssh-keygen -t rsa -f /etc/ssh/ssh_host_rsa_key	'创建非对称密钥，并指定文件路径'
RUN sed -i '/^session\s\+required\s\+pam_loginuid.so/ s/^/#/' /etc/pam.d/sshd	'禁用pam的ssh的pam会话模块'
RUN mkdir -p /root/.ssh && chown root.root /root && chmod 700 /root/.ssh	'创建ssh工作目录和权限设置'
EXPOSE 22	'开放22端口'
CMD ["/usr/sbin/sshd","-D"]   	'容器加载时启动sshd服务'

2、生成镜像，取名为sshd:new

[[email protected] sshd]# docker build -t sshd:new .
[[email protected] sshd]# docker images
REPOSITORY          TAG                 IMAGE ID            CREATED             SIZE
sshd                new                 7029ffb7629c        15 seconds ago      481MB
nginx               centos7             9946f31b2ac5        4 hours ago         480MB
centos              7                   7e6257c9f8d8        6 weeks ago         203MB

3、启动容器，并指定端口号为333

[[email protected] sshd]# docker run -d -p 333:22 sshd:new
1fc9de23d17d422c5a1ef61799e7e768b977c5aea00013413a9d46ce68baaa15
[[email protected] sshd]# docker ps -a
CONTAINER ID        IMAGE               COMMAND                  CREATED              STATUS                       PORTS                           NAMES
1fc9de23d17d        sshd:new            "/usr/sbin/sshd -D"      27 seconds ago       Up 26 seconds                0.0.0.0:333->22/tcp             upbeat_bartik

4、测试登陆

[[email protected] sshd]# ssh localhost -p 333
The authenticity of host '[localhost]:333 ([::1]:333)' can't be established.
RSA key fingerprint is SHA256:3sg3lp+Uuf5cZCSnEWDPS16LYjPoRp8huULLYMQ2p9I.
RSA key fingerprint is MD5:e6:ca:37:48:08:b4:b7:99:79:c4:25:79:55:10:ce:4a.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added '[localhost]:333' (RSA) to the list of known hosts.
[email protected]'s password:
[root@1fc9de23d17d ~]#
[root@1fc9de23d17d ~]# systemctl status sshd
Failed to get D-Bus connection: Operation not permitted    '发现无法使用systemctl命令，我们需要继续构建systemctl镜像'
[root@1fc9de23d17d ~]# exit
logout
Connection to localhost closed.
[[email protected] sshd]#

1.3：构建systemctl镜像

基于SSHD镜像继续构建

1、创建目录，编写Dockerfile文件

[[email protected] sshd]# mkdir /systemctl
[[email protected] sshd]# cd /systemctl
[[email protected] systemctl]# vim Dockerfile
FROM sshd:test
MAINTAINER built image systemctl <tang>
ENV container docker	'设置环境变量，container和docker'
RUN yum install -y vim
RUN (cd /lib/systemd/system/sysinit.target.wants/; for i in *;do [ $i == \
systemd-tmpfiles-setup.service ] || rm -f $i; done); \	'执行先到指定目录，进行for循环遍历目录下所有文件并删除指定的文件。之后进行一系列的删除'
rm -f /lib/systemd/system/multi-user.target.wants/*; \
rm -f /etc/systemd/system/*.wants/*; \
rm -f /lib/systemd/system/local-fs.target.wants/*; \
rm -f /lib/systemd/system/sockets.target.wants/*udev*; \
rm -f /lib/systemd/system/sockets.target.wants/initctl*; \
rm -f /lib/systemd/system/basic.target.wants/*; \
rm -f /lib/systemd/system/anaconda.target.wants/*;
VOLUME [ "/sys/fs/cgroup" ]	'创建一个挂在卷'
CMD ["/usr/sbin/init"]	'init指执行初始化'

2、生成镜像

[[email protected] systemctl]# docker images
REPOSITORY          TAG                 IMAGE ID            CREATED             SIZE
systemctl           new                 3b610325c839        2 minutes ago       592MB
sshd                new                 7029ffb7629c        36 minutes ago      481MB
nginx               centos7             9946f31b2ac5        5 hours ago         480MB

3、创建容器

[[email protected] systemctl]# docker run --privileged -it --name systemctl -v /sys/fs/cgroup:/sys/fs/cgroup:ro systemctl:test sbin/init &
    '--privateged 使container内的root拥有真正的root权限，不进行降权处理。否则，container内的用户只是外部的一个普通用户'

4、登陆检测

[[email protected] systemctl]# docker exec -it 66f098cd541c /bin/bash
[root@66f098cd541c /]# systemctl status sshd          '可以使用systemctl的命令了'
● sshd.service - OpenSSH server daemon
   Loaded: loaded (/usr/lib/systemd/system/sshd.service; disabled; vendor preset: enabled)
   Active: inactive (dead)
     Docs: man:sshd(8)
           man:sshd_config(5)

1.4：构建nginx镜像

1、创建目录并编写Dockerfile文件

[[email protected] ~]# mkdir /nginx
[[email protected] ~]# cd /nginx/
[[email protected] nginx]# vim Dockerfile
FROM systemctl:test
MAINTAINER build image nginx <tang>
RUN yum -y update
RUN yum -y install gcc gcc-c++ pcre* make cmake zlib-devel openssh* net-tools lsof telnet passwd vim
ADD nginx-1.12.2.tar.gz /usr/local/src
RUN useradd -M -s /sbin/nologin nginx
WORKDIR /usr/local/src/nginx-1.12.2
RUN (./configure --prefix=/usr/local/nginx --user=nginx --group=nginx --with-http_stub_status_module)
RUN make && make install
ENV PATH /usr/local/nginx/sbin/:$PATH
#RUN ln -s /usr/local/nginx/sbin/ * /usr/local/sbin/
EXPOSE 80
EXPOSE 443
RUN echo "daemon off;" >> /usr/local/nginx/conf/nginx.conf	'指关闭守护进程启动'
CMD ["/usr/local/nginx/sbin/nginx"]
[[email protected] nginx]# rz -E	'上传nginx源码包'
rz waiting to receive.
[[email protected] nginx]# ls
Dockerfile  nginx-1.12.2.tar.gz

2、生成镜像
生成镜像取名为nginx:centos7

3、启动容器，映射端口号为1314

06823a8a9623        nginx:centos7       "/run.sh"                18 hours ago        Exited (255) 8 minutes ago   443/tcp, 0.0.0.0:1314->80/tcp   nginx01

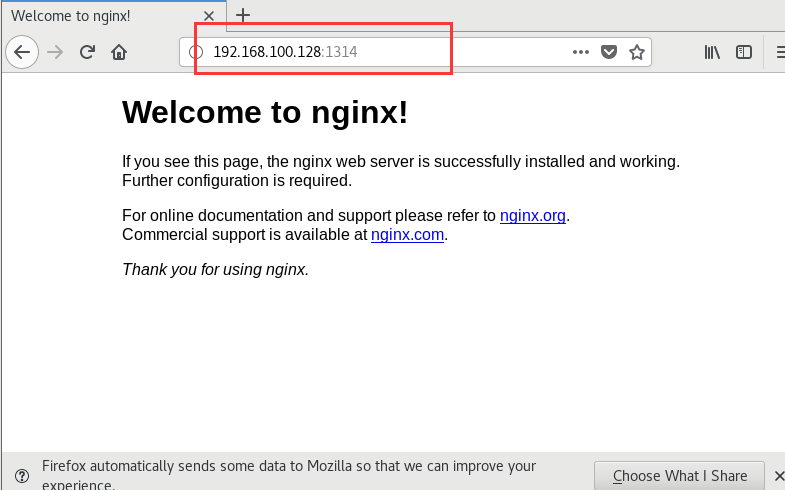

4、登录验证

1.5：构建Tomcat镜像

1、创建目录并编写Dockerfile文件，上传相关文件

[[email protected] tomcat]# ls
apache-tomcat-9.0.16.tar.gz  Dockerfile  jdk-8u91-linux-x64.tar.gz
[[email protected] tomcat]# vim Dockerfile
FROM centos:7
MAINTAINER this is tomcat-centos
ADD jdk-8u91-linux-x64.tar.gz /usr/local
WORKDIR /usr/local/
RUN mv jdk1.8.0_91 /usr/local/java
ENV JAVA_HOME /usr/local/java
ENV JAVA_BIN /usr/local/java/bin
ENV JRE_HOME /usr/local/java/jre
ENV PATH $PATH:/usr/local/java/bin:/usr/local/java/jre/bin
ENV CLASSPATH /usr/lcoal/java/jre/bin:/usr/local/java/lib:/usr/local/java/jre/lib/charsets.jar
ADD apache-tomcat-9.0.16.tar.gz /usr/local
WORKDIR /usr/local
RUN mv apache-tomcat-9.0.16 tomcat9
EXPOSE 8080
ENTRYPOINT ["/usr/local/tomcat9/bin/catalina.sh","run"]

2、生成镜像

[[email protected] tomcat]# docker build -t tomcat:new .

3、创建容器，指定端口号

[[email protected] tomcat]# docker run -d --name tomcat01 -p 1111:8080 tomcat:new
03eb2bbb5dff2064ae4873a478887e3eb9ac98ea598b190ddbaf49c14b018e6f

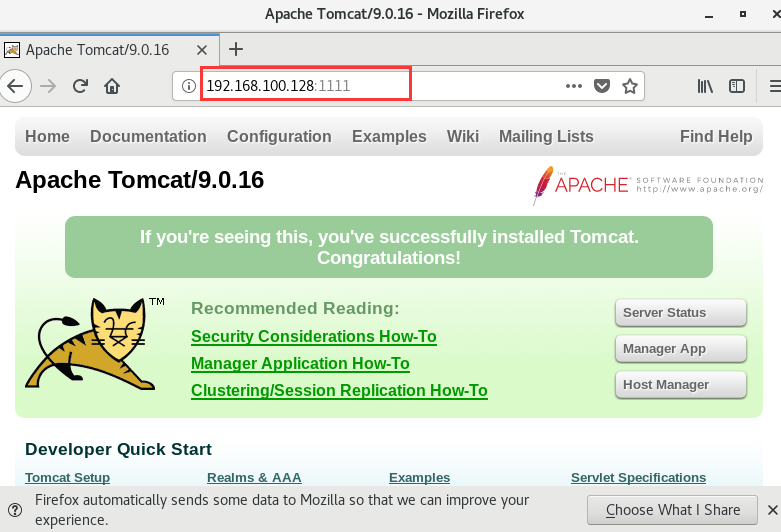

4、登录验证

1.6：构建MySQL镜像

[[email protected] mysql]# ls
mysql-boost-5.7.20.tar.gz

1、创建目录并编写Dockerfile文件

[[email protected] mysql]# vim Dockerfile
FROM centos:7
MAINTAINER this is mysql-centos
RUN  yum -y install ncurses bison cmake gcc ncurses-devel gcc-c++ make
RUN useradd mysql -M -s /sbin/nologin
ADD mysql-boost-5.7.20.tar.gz /usr/local/src
WORKDIR /usr/local/src/mysql-5.7.20
RUN cmake \
-DCMAKE_INSTALL_PREFIX=/usr/local/mysql \
-DMYSQL_UNIX_ADDR=/usr/local/mysql/mysql.sock \
-DSYSCONFDIR=/etc \
-DSYSTEMD_PID_DIR=/usr/local/mysql \
-DDEFAULT_CHARSET=utf8 \
-DDEFAULT_COLLATION=utf8_general_ci \
-DWITH_INNOBASE_STORAGE_ENGINE=1 \
-DWITH_ARCHIVE_STORAGE_ENGINE=1 \
-DWITH_BLACKHOLE_STORAGE_ENGINE=1 \
-DWITH_PERFSCHEMA_STORAGE_ENGINE=1 \
-DMYSQL_DATADIR=/usr/local/mysql/data \
-DWITH_BOOST=boost \
-DWITH_SYSTEMD=1
RUN make && make install
RUN chown -R mysql:mysql /usr/local/mysql/
RUN rm -rf /etc/my.cnf
ADD my.cnf /etc/
RUN chown mysql.mysql /etc/my.cnf
ENV PATH /usr/local/mysql/bin:/usr/local/mysql/lib:$PATH
RUN /usr/local/mysql/bin/mysqld \
--initialize-insecure \
--user=mysql \
--basedir=/usr/local/mysql \
--datadir=/usr/local/mysql/data
RUN cp /usr/local/mysql/usr/lib/systemd/system/mysqld.service /lib/systemd/system/
EXPOSE 3306
RUN echo -e "#!bin/sh  \nsystemctl enable mysqld" >/run.sh
RUN chmod 755 /run.sh
RUN sh /run.sh
CMD ["init"]

2、编写配置文件

[[email protected] mysql]# vim my.cnf
default-character-set=utf8
socket = /usr/local/mysql/mysql.sock

[mysql]
port = 3306
default-character-set=utf8
socket=/usr/local/mysql/mysql.sock

[mysqld]
user = mysql
basedir = /usr/local/mysql
datadir=/usr/local/mysql/data
port = 3306
character_set_server=utf8
pid-file = /usr/local/mysql/mysqld.pid
socket = /usr/local/mysql/mysql.sock
server-id = 1

sql_mode=NO_ENGINE_SUBSTITUTION,STRICT_TRANS_TABLES,NO_AUTO_CREATE_USER,NO_AUTO_VALUE_ON_ZERO,NO_ZERO_IN_DATE,NO_ZERO_DATE,ERROR_FOR_DIVISION_BY_ZERO,PIPES_AS_CONCAT,ANSI_QUOTES

3、生成镜像

[[email protected] mysql]# docker run -d -P --privileged mysqld:new
6860174a05539e34521ef0e30d2dd3ac557f6f5fe550fa27f02ecb731489003c
[[email protected] mysql]# docker ps -a
CONTAINER ID        IMAGE               COMMAND             CREATED             STATUS                      PORTS                     NAMES
6860174a0553        mysqld:new          "/run.sh"           8 seconds ago       Up 8 seconds                0.0.0.0:32768->3306/tcp   cranky_herschel

4、进入镜像中mysql数据库，进行验证

[[email protected] mysql]# docker exec -it 6860174a0553 /bin/bash
[root@6860174a0553 mysql-5.7.20]# mysql -uroot -p
mysql> grant all privileges on *.* to 'root'@'%' identified by '123456';
Query OK, 0 rows affected, 1 warning (0.00 sec)

mysql> grant all privileges on *.* to 'root'@'localhost' identified by '123456';
Query OK, 0 rows affected, 1 warning (0.00 sec)

mysql> show databases;
+--------------------+
| Database           |
+--------------------+
| information_schema |
| mysql              |
| performance_schema |
| sys                |
+--------------------+
4 rows in set (0.00 sec)

mysql> create database school;     '添加school数据库'
Query OK, 1 row affected (0.00 sec)

mysql> show databases;
+--------------------+
| Database           |
+--------------------+
| information_schema |
| school             |
| mysql              |
| performance_schema |
| sys                |
+--------------------+
5 rows in set (0.00 sec)

5、其它节点安装mariadb进行测试

[[email protected] ~]# yum install mariadb* -y
[[email protected] ~]# systemctl start mariadb.service

6、连接数据库

[[email protected] ~]# mysql -h 192.168.100.129 -uroot -P 32768 -p
MySQL [(none)]> show databases;
+--------------------+
| Database           |
+--------------------+
| information_schema |
| mysql              |
| performance_schema |
| sys                |
+--------------------+
4 rows in set (0.00 sec)

7、数据库数据同步

MySQL [(none)]> show databases;
+--------------------+
| Database           |
+--------------------+
| information_schema |
| cllt               |
| mysql              |
| performance_schema |
| sys                |
+--------------------+
5 rows in set (0.00 sec)
